13.56Mhz Passive Small RFID Label Tag For Liquid Bottle

13.56Mhz Passive Small RFID Label Tag For Liquid Bottle

Shenzhen A.N.G Technology Co,. Ltd is a company which can provide RFID Tag , Reader and Design. RFID system is made of Antenna, Tag and Reader. The RFID technology has been widely used in various field nowadays, here we will talk about the application with NFC Tag in Wine and Medicine Bottle Management. According to the requirements from our customers, most of them want us provide them a solution with NFC Label which can help customers use NFC phones read the details of products. This NFC tag can be detected 2 states of memory , one is SEAL CLOSED, another is SEAL BROKEN.

Feature:

1)       Size: diameter 21mm x 49mm

2)       Material: Paper/PET

3)       Print: customize printing according to design

4)       Read distance up to 250px

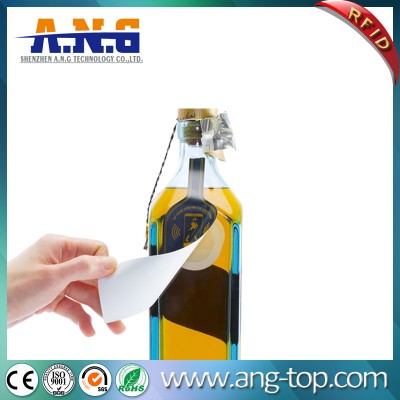

5)       Production picture as below

Chip parameter:

1)    Protocol: ISO/IEC 14443 type A & NFC Forum Type 2

2)       Frequency: 13.56Mhz

3)       RFID ICs: NTAG 213/NTAG215/NTAG216

4)       User memory: NTAG 213 (144 byte), NTAG 215( 504Byte), NTAG 216 (888 byte)

5)       Manufacturer programmed 7-byte UID for each device

Application:

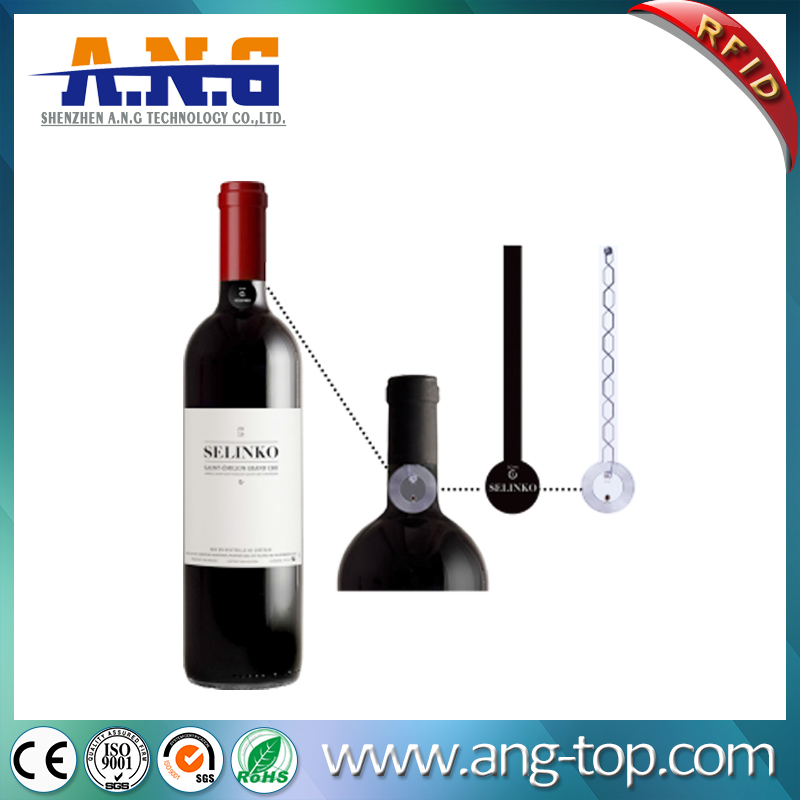

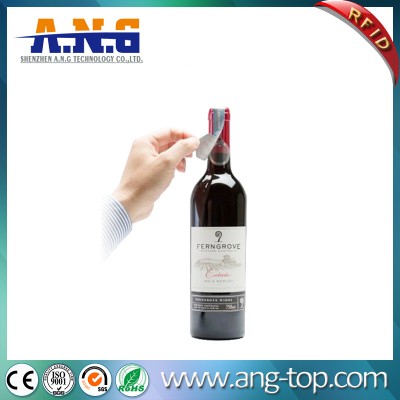

NFC labels stick on bottle cap or body, sealed on bottleneck, customers use NFC mobile to scan the label to know product details (pre-program details into chip, such as URL, batch number, production time, ect). Once open the bottle, sealed or antenna will be damaged, NFC phone can’t read any information.
