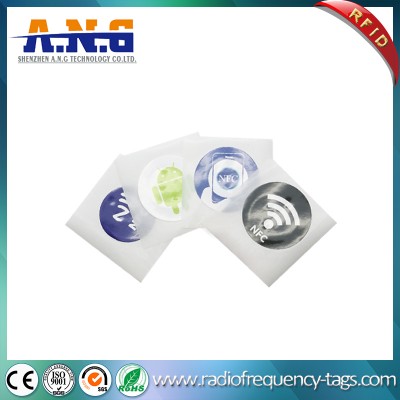

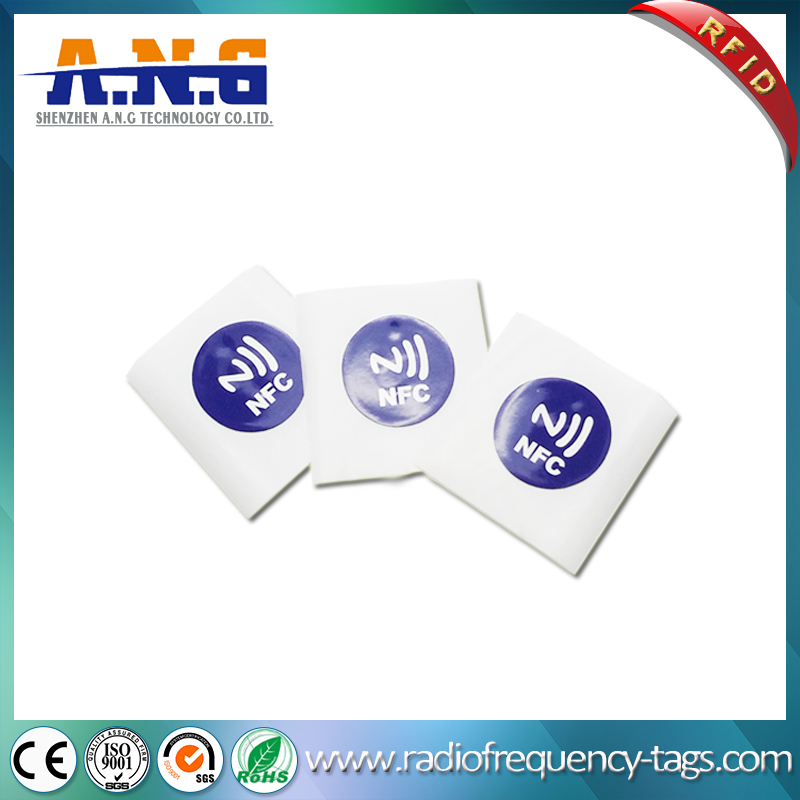

Printable RFID Smart Tag NFC Sticker for Mobile Payment
The RFID smart tag that functions within the MIFARE 1K guidelines. You can use these for all sorts of identification and sensing applications. The tag also has 1K of data storage which can be read and written from a compatible device. The smart tag is transparent and has a diameter of 25mm and an overall thickness of about 0.1mm. It works with MIFARE 13.56 MHz compatible readers.
The MIFARE 1K sticker is fundamentally just a memory storage device, where the memory is divided into segments and blocks with simple security mechanisms for access control. They are based and have limited computational power. Thanks to their reliability and low cost, these tags are widely used for electronic wallet, access control, corporate ID cards, transportation or stadium ticketing.
Protocol standard | ISO14443A |
Operation Frequency | 13.56Mhz |
Reading range | about 1~5cm (vary from different reader and environment) |
Chip Model | Ntag203/213/215/216 |
user Memory | 144/504/888 Bytes |

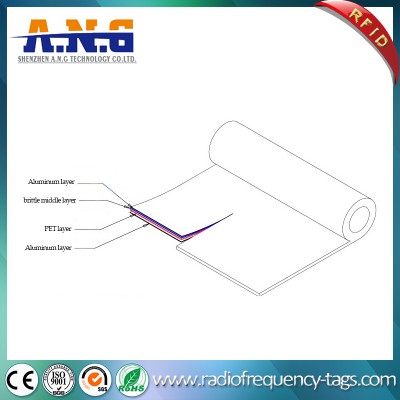

Antenna Material | Aluminum etching antenna |
Process | Flip chip |
Print
- Full color offset printing- Silk
- Screen printing- Silver/Gold silk
- Screen printing background
Optional Technique
- Special function option Anti-metal layer
- Custom logos/artworks printing/ Laser engrave
- ID Number Printing Jet dot printing
-URL,text,number.etc encoding/lock to read only
About us: Shenzhen A.N.G Technology CO., Ltd located in Shenzhen, is a high-tech manufacturer specialized in production Radio Frequency Identification Smart Card, NFC Label and Card Reader.
1. Wide Range Products Item
2. Better Price With High Quality And Professional Package.
3. Be Specialized In RFID Tag, NFC Tag And Smart Card For Long Time.
4. Customize Products Depending On Different Project From Customers.
5. Professional Designer, Experienced Salesman And Workers.
6. Advanced Production Experience and Professional R&D Capability.
NXP | Mifare S50 | 1k byte | Contactless | 13.56MHZ | ISO 14443A |
Mifare S70 | 4k byte | ||||
Mifare DESfire 2K | 2K byte | ||||
Mifare DESfire 4K | 4k byte | ||||
Mifare DESfire 8K | 8K byte | ||||
Mifare Ultralight | 512 bit | ||||
Mifare Ultralight C | 1536 bit | ||||
Mifare Plus-S2K | 2K byte | ||||
Mifare Plus-X2K | 2K byte | ||||
Mifare Plus-S4K | 4K byte | ||||
Mifare Plus-X4K | 4K byte | ||||
I-CODE SLI X | 1024 bit | 13.56MHZ | ISO15693 | ||
I-CODE SLI S | 2048 bit | ISO15693 ISO/IEC 18000-3 |
|||
NTAG 213 | 144 Byte | ISO/IEC 14443A NFC Forum type 2 |
|||
NTAG 215 | 504 Byte | ISO/IEC 14443A NFC Forum type 2 |
|||
NTAG 216 | 888 Byte | ISO/IEC 14443A NFC Forum type 2 |
|||
HITAG 1 | 2k bit | 125 kHz | ISO 11784/11785 | ||
HITAG 2 | 256 Bit | ISO 11784/11785 | |||
NXP UCODE G2XM | 128 bit | 860-960MHZ | ISO 18000-6C EPC class 1 Gen2 |
13.56MHz RFID NFC Tag Paper Sticker Label Ntag215
